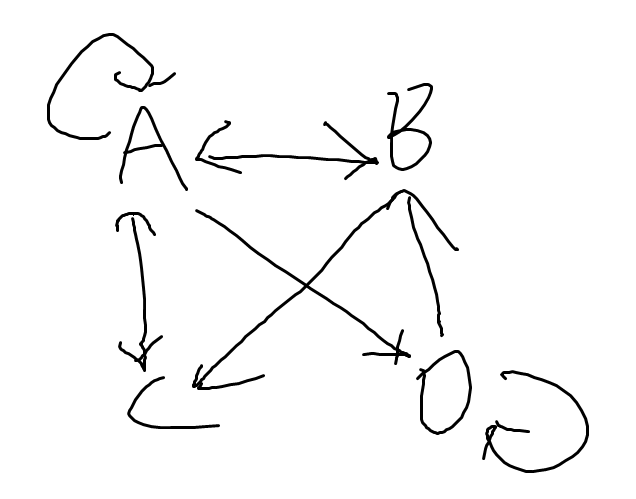

Which nodes have the MOST paths of length 3 between them?

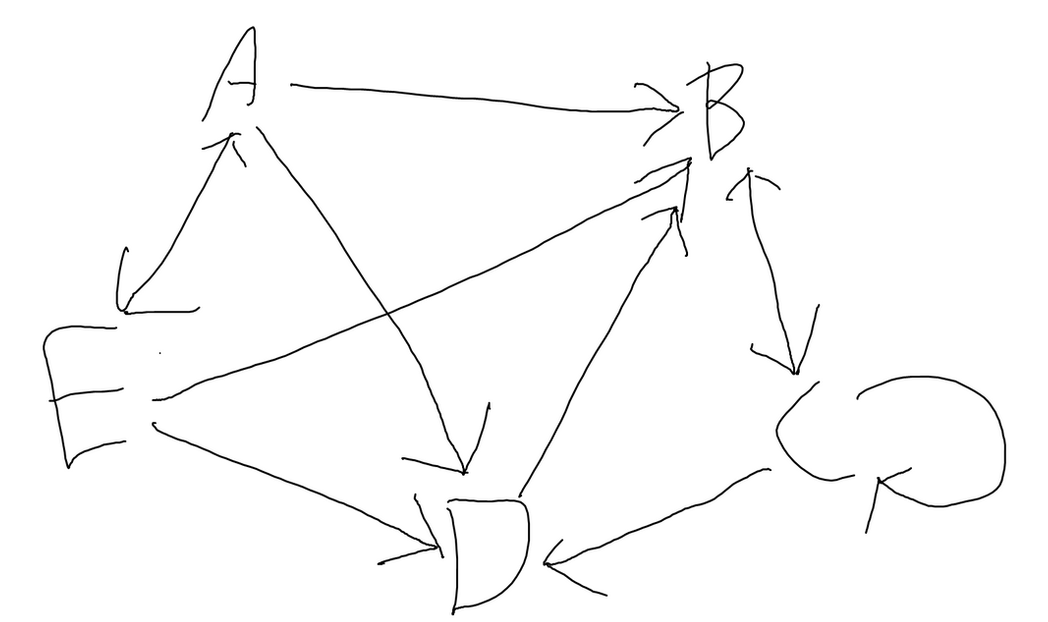

What are all the paths of length 3 from E to B in this graph?

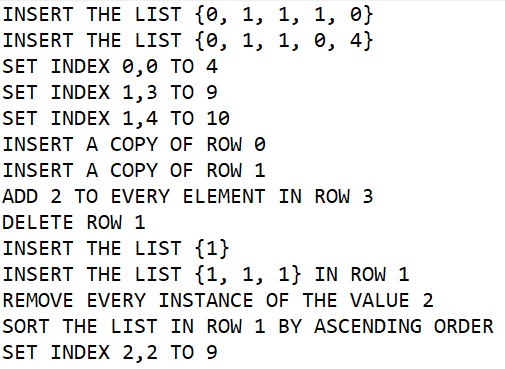

Start out with an empty list of lists. What are the contents of row 2 after these operations? BONUS: Instead of using a 2D array, it is possible, though more complicated, to use a 1D array instead. For example, this would be how to convert a 2x2 array to a 1D array with 4 elements: Given the index of an element of the 1D array, how can you convert it into the indices for the same element in the 2D array? For example, an index of 1 would be come (0,1) in the 2D array.

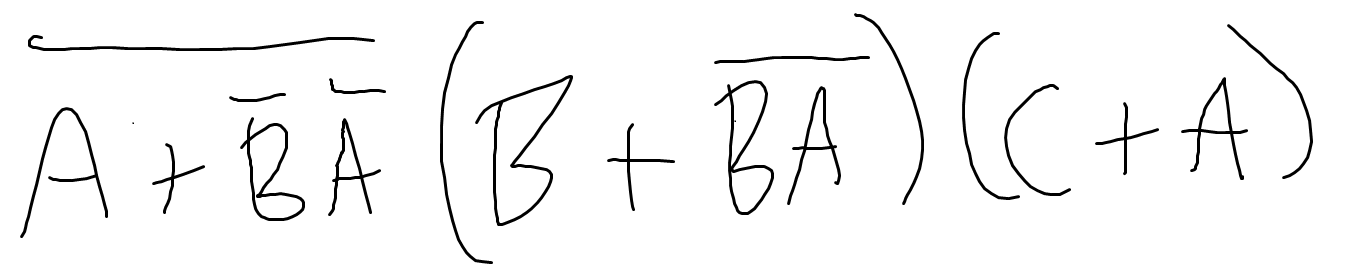

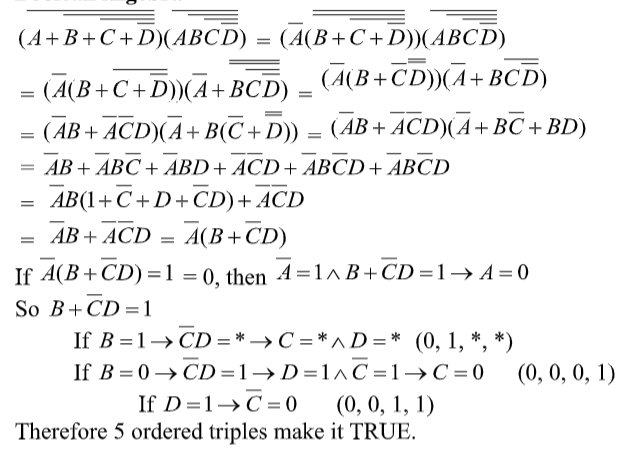

Simplify these boolean expressions (You can use ! and brackets to represent NOT): How many outputs are true for the following expression?: If you have forgotten anything, this page has a list of truth tables and laws: http://www.categories.acsl.org/wiki/index.php?title=Boolean_Algebra

The mock contest: https://docs.google.com/forms/d/e/1FAIpQLSdKgjK0YsyCQPQtPFigO0txMcFzzh-Ltes8R1pWo33T-AbPdg/viewform?usp=sf_link Boolean Algebra: Bit-String Flicking: Recursive Functions: Digital Electronics: Prefix-Infix-Postfix Computer Number Systems: What Does This Program Do: Data Structures: Graph Theory:

You've completed the last class of this course! The finals contest is on Saturday so here is some material to help review. Do as much as you think you need. If you have forgotten anything, this website can help you review: http://www.categories.acsl.org/wiki/index.php?title=Main_Page. Boolean Algebra: Bit-String Flicking: Let X = abcde. Solve the following bit string equation for X: (LCIRC-3 (RSHIFT-1 X) OR 11010 AND NOT (RCIRC-2 10001)) = ((LSHIFT-2 10101) XOR 01110) Solve for X (5-bits) in the following equation: NOT X AND (LSHIFT-1(RCIRC-2 01011)) = 10000 What is the final value of X? X = 11010011010 FOR k = 1 TO 71 X = (RCIRC-k X) NEXT k Recursive Functions: Digital Electronics: Prefix-Infix-Postfix: Given the following operations: % means MOD (integer remainder) such that 5%2 = 1 and \ means DIV (integer quotient) such that 5\3 = 1, evaluate the following prefix expressions if A=5, B=12, C=8, and D=20. Note that all numbers in the original expression are single digits. / - ^ \ * C - - D A B A \ ^ % + A C - D B 2 7 1 - B % B A The trinary operator diff takes 3 arguments a, b, and c and returns the maximum of abs(a-b), abs(b-c), and abs(a-c), where abs(x) is the absolute value of x. Evaluate the following prefix expression: diff / 8 2 diff + 2 1 – 4 3 ↑ 2 3 * 2 3 Define the following unary operators as: # = largest prime number less than a & = smallest prime number greater than a Evaluate the following prefix expression: − / * + # 3 & 6 # 12 # 4 / / * 4 + / 6 # 3 & 2 # 3 & 2 Computer Number Systems: Tickets for a concert were numbered from 1 16 to AA 16 . If when the ticket number is converted to binary it contains the string “10101”, then the lucky ticket holders will receive a Back Stage Pass for after the concert. How many (one pass per winning ticket) passes were given out if the concert was sold out? The ACSL hardware engineers have recently developed a 5-bit memory chip using radical new biotechnology. Unfortunately, the chip melts whenever a value containing the pattern "101" appears within the 5 bits. Of the 32 possible values that the chip can hold, how many will cause the chip to melt? How many of the binary representations of the numbers from 2 to 2047, inclusive, are palindromes? (Lead digit cannot be 0.) What Does This Program Do?: Data Structures: Given the binary search tree for LOSANGELESCA, delete the root node. List the nodes at depth 3 from left to right. Using the ACSL definition, build a heap from the keys N E W H A M P S H I R E (in that order). List the nodes at depth 2, from left to right. Given an initially empty stack and the string DISNEYWORLDORLANDOFLORIDA, perform the following: pop if it is a vowel and push if it is a consonant. If the next string added is a vowel, what item would be popped? Vowels are A, E, I, O, U. Graph Theory: In a directed graph, the paths represent streets from one intersection to another. The intersections are: {A, B, C, D, E, F, G}. The streets are: {AB, BF, EF, CD, ED, DC, EB, FA, GF, FE, BE, CE, GA, FG, AG, FB}. A new one-way street was added from B to C and the two-way street between F and G was closed due to non-use. What was the change in the number of cycles from A between the first directed graph and the second one? Answers: Boolean Algebra: ABC (0, 0, 1), (1, 0, 0) Bit-String Flicking: *0*1* 0*1** 10101101001 Recursive Functions: 11 15 -15 Digital Electronics: 1 4 12 Prefix-Infix-Postfix: 6.3 3 29 Computer Number Systems: 15 11 93 What Does This Program Do?: 90 40 II,III,V Data Structures: E,O H, H, M, P F Graph Theory: 2 fewer 0 11

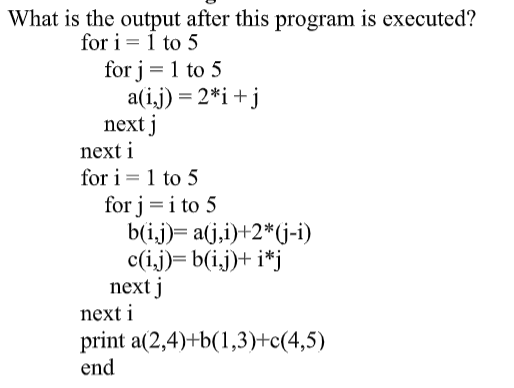

What does this program do: Continue the programming problem from last time: Sample input: 2, 5, 3, 5, 4, 4, 3 3, 4, 5, 3, 2, 2, 1 2, 1, 2, 4, 5 1 2 3 4 5 Sample output: 1 0 0 3 3 Test input: 1, 1, 2, 4, 3, 4, 1 2, 3, 1, 5, 4, 2, 4 1, 2, 4, 2, 1 2 5 1 2 4 Test output: 3 1 0 0 0 ANSWERS: What does this program do: 55. The three arrays look like this after the program has finished (notice the patterns! Almost every question like this has a pattern and it helps speed things up): Programming (sorry for any formatting issues): My python solution: def remove(hand): count = [0,0,0,0,0] for i in hand: count[i-1]+=1 for i in range(5): if count[i]>=4: while i+1 in hand: hand.remove(i+1) return hand opp = input().split(", ") pla = input().split(", ") dec = input().split(", ") oppo = [] play = [] deck = [] for i in range(7): oppo.append(int(opp[i])) play.append(int(pla[i])) for i in range(5): deck.append(int(dec[i])) for i in range(5): num = int(input()) if num in oppo: while num in oppo: oppo.remove(num) play.append(num) else: play.append(deck[0]) del deck[0] play = remove(play) count = 0 for i in play: if i==num: count += 1 print("output:",count) My java solution: import java.util.*; class Main { public static ArrayList<Integer> remove(ArrayList<Integer> hand){ int[] count = new int[5]; for(int i : hand){ count[i-1]++; } for(int i=0; i<5; i++){ if(count[i]>=4){ for(int j=0; j<hand.size(); j++){ if(hand.get(j)==i+1){ hand.remove(j); j--; } } } } return hand; } public static void main(String[] args) { Scanner in = new Scanner(System.in); String[] opp = in.nextLine().split(", "); String[] pla = in.nextLine().split(", "); String[] dec = in.nextLine().split(", "); ArrayList<Integer> oppo = new ArrayList<Integer>(); ArrayList<Integer> play = new ArrayList<Integer>(); ArrayList<Integer> deck = new ArrayList<Integer>(); for(int i=0; i<7; i++){ oppo.add(Integer.parseInt(opp[i])); play.add(Integer.parseInt(pla[i])); } for(int i=0; i<5; i++){ deck.add(Integer.parseInt(dec[i])); } for(int i=0; i<5; i++){ int num = in.nextInt(); if(oppo.contains(num)){ for(int j=0; j<oppo.size(); j++){ if(oppo.get(j)==num){ oppo.remove(j); play.add(num); j--; } } } else { play.add(deck.get(0)); deck.remove(0); } play = remove(play); int count = 0; for(int j : play){ if(j==num){ count++; } } System.out.println(count); } } }

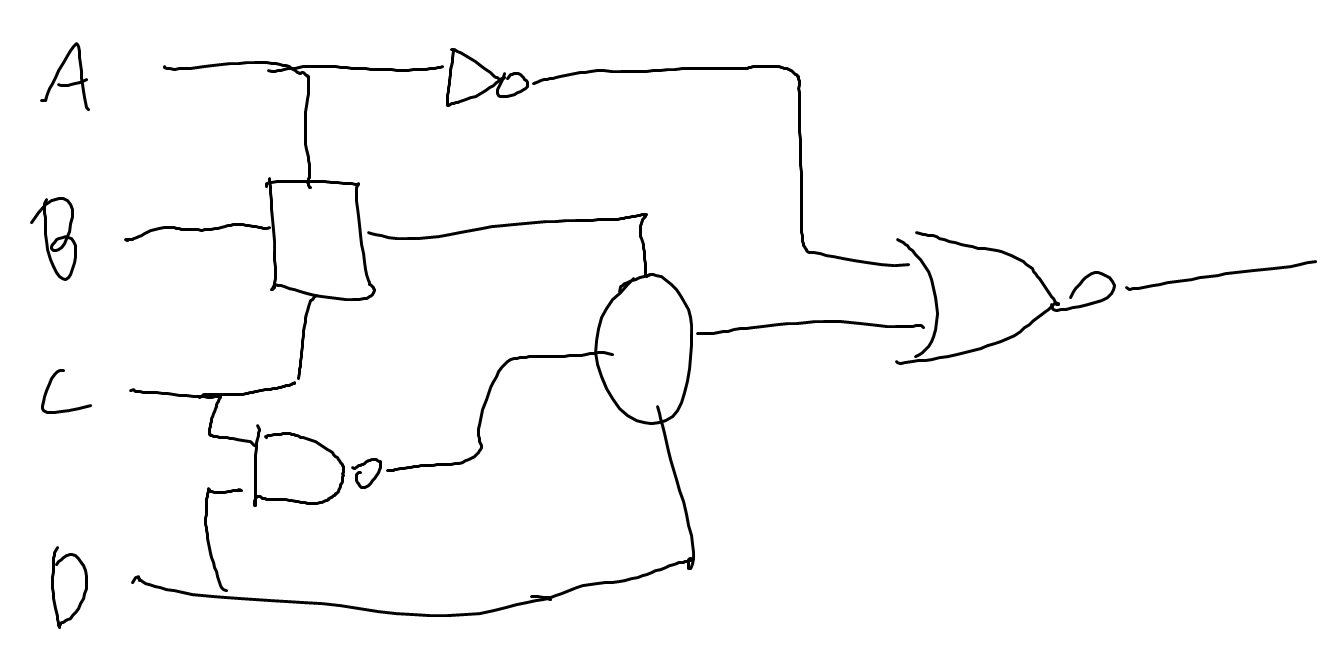

Prefix/postfix: Evaluate this postfix expression if a=3, b=-2, and c=5: a b - c / b ^ a - c 2 a * 3 b * - * + Define a%b to be 3a+7b, evaluate this prefix expression: % - + 3 1 % 3 4 / 6 + 1 + 1 1 Define a#b to be the maximum of a/b and b/a, and a!b to be 2a-b, evaluate this postfix expression: 6 3 ! 2 1 / + 3 - 9 3 # 2 - + 8 8 2 + + # Digital electronics: Rectangle takes in 3 inputs and is true if exactly 1 input is true. Oval takes in 3 inputs and is true if all 3 inputs are true. How many ordered quadruples make the following circuit false? 2. Square takes in 3 inputs and is true if no inputs are true. X takes in 3 inputs and is false if exactly 2 inputs are true. How many ordered quadruples make the following circuit true?

Graph theory: 1. How many paths of length 3 are there that end at D? 2. How many cycles are in this graph? Bit-string flicking: Solve for X: RCIRC-4(LSHIFT-1(X OR 00101) AND RCIRC-2(11011 AND 10111)) = 11001 AND 11100 OR LSHIFT-3(01111 AND 11011) Solve for X: LSHIFT-1(00101 OR RCIRC-2(X XOR 01010)) = LSHIFT-1(11010 XOR 00111) RCIRC-3(01101 XOR (X AND 10110)) = 01101 Solve for X: RSHIFT-2(00101 OR 00011 AND RCIRC-2(01011)) = LCIRC-2(01110 AND RCIRC-4(00100 OR X))

I'll post the remaining 5 problems from other topics as homework. How many 1’s are there in the binary representation of this octal number: 16743 Evaluate: (LCIRC–2 (RSHIFT–1 (RCIRC–2 (LSHIFT–2 10101)))) Given an initially empty stack and the following sequence of operations, what would be the next POPPED element? PUSH(O), PUSH(C), PUSH(E), POP(X), PUSH(A), PUSH(N), POP(X), POP(X), PUSH(S), PUSH(T), POP(X), PUSH(A), PUSH(T), PUSH(E), POP(X), POP(X) Simplify this digital circuit:

Digital Electronics: Here is a website with all the logic gates in case you forgot any: http://www.categories.acsl.org/wiki/index.php?title=Digital_Electronics Simplify these digital circuits: How many outputs are FALSE for these expressions? Answers: !A+B+!C+D !A!B!C !A+!B 4 3 1 Graph Theory: Here is a website that covers graph theory in case you forgot anything: http://www.categories.acsl.org/wiki/index.php?title=Graph_Theory How many paths are there of length 3 from A to C? How many paths are there of length 4 from A to D? How many paths are there of length 3 from B to A? How many cycles are in this graph? How many cycles are in this graph? Make an adjacency matrix of this graph and tell me the sum of each row: Answers: 5 7 4 5 5 2,2,3,5,2

Boolean algebra: Simplify these expressions: How many inputs are true for the following expressions? Answers: !ABC B!D + A!BC B!C + AB BC + !A!B!C 3 15 4 Data Structures: What is popped next in this queue? PUSH(D), PUSH(F), POP(X), PUSH(G), POP(X), POP(X), PUSH(H), PUSH(J), PUSH(K), POP(X), PUSH(Q), POP(X), PUSH(Q), PUSH(W), POP(X), POP(X), PUSH(Q), PUSH(Q), POP(X), PUSH(Q), PUSH(Y), POP(X), PUSH(C), POP(X), PUSH(T), PUSH(A), POP(X), POP(X), PUSH(J), POP(X) PUSH(A), POP(X), PUSH(G), PUSH(U), PUSH(B), PUSH(X), POP(X), POP(X), PUSH(X), PUSH(L), POP(X), PUSH(P), POP(X), PUSH(S), PUSH(R), POP(X), POP(X), PUSH(R), PUSH(R), PUSH(H), POP(X), PUSH(N), PUSH(Z), PUSH(U), POP(X), POP(X), POP(X), PUSH(W), PUSH(E) What is popped next in this stack? PUSH(D), PUSH(F), POP(X), PUSH(G), POP(X), POP(X), PUSH(H), PUSH(J), PUSH(K), POP(X), PUSH(Q), POP(X), PUSH(Q), PUSH(W), POP(X), POP(X), PUSH(Q), PUSH(Q), POP(X), PUSH(Q), PUSH(Y), POP(X), PUSH(C), POP(X), PUSH(T), PUSH(A), POP(X), POP(X), PUSH(J), POP(X) PUSH(A), POP(X), PUSH(G), PUSH(U), PUSH(B), PUSH(X), POP(X), POP(X), PUSH(X), PUSH(L), POP(X), PUSH(P), POP(X), PUSH(S), PUSH(R), POP(X), POP(X), PUSH(R), PUSH(R), PUSH(H), POP(X), PUSH(N), PUSH(Z), PUSH(U), POP(X), POP(X), POP(X), PUSH(W), PUSH(E) What is the depth of these binary trees? NOTEBOOK HONOLULU MARIACHI MYNAMEJEF Answers: C R Q E 3 4 5 5

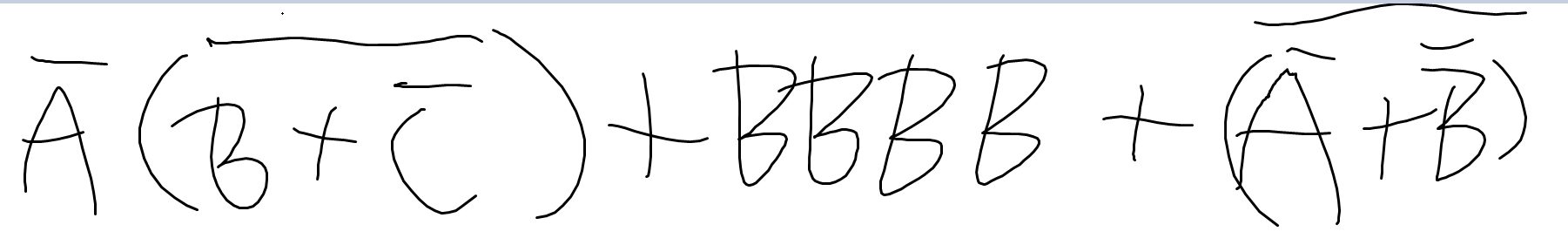

Simplify these boolean expressions (You can use ! and brackets to represent NOT): How many outputs are true for the following expression?: If you have forgotten anything, this page has a list of truth tables and laws: http://www.categories.acsl.org/wiki/index.php?title=Boolean_Algebra
